Introduction

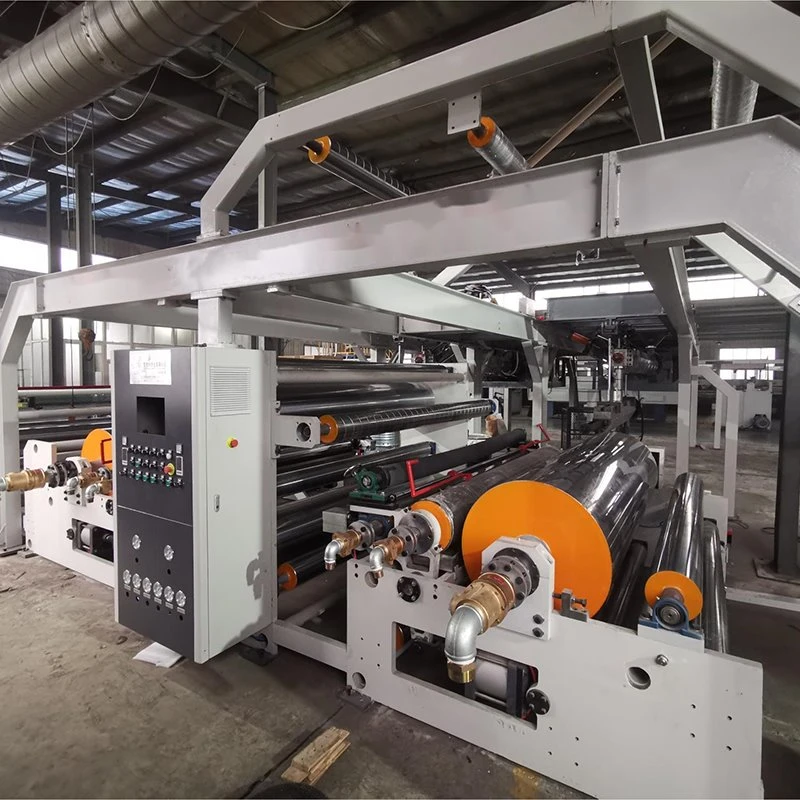

This unit uses PP or PE as the raw material, and uses the salivation process and PP Woven Fabric to perform Single Side/Double Side Lamination. The entire process flow of the unit, from Fabric Under, Lamination, and Rewider, is equipped with advanced electrical and mechanical devices to achieve single control and group control linkage. The Two Section Player uses EPC Control to perform EPC control on the fabric, and uses brakes to perform Tension Control on the fabric to achieve Automatic Roller; Before laminating, a preheating roller is installed to preheat and dry the fabric. Lamination, silica gel, pressing roller, etc. adopt a double interlayer forced water cooling
circulation structure, which has a good cooling effect; Rewider adopts two section stable tension surface friction Rewider and pneumatic cross cutting to achieve non-stop Roller Change. It is equipped with a waste edge cutting, edge blowing mechanism, and product length counting device. The clutch of each roller of the entire machine is controlled pneumatically.
Specification
|
Item |
Specification |
|
Lamination Width |
1000-2300 mm |
|
Lamination Thickness |
0.025-0.08mm |
|
Speed |
20-150m/min |
|
Screw diameter |
120mm |
|
Draw Ratio |
33:1 |
|
Screw speed |
105 r/min |
|
Max Extrusion |
350 kg/h |
|
Roller Length |
2400mm |
|
Die Width |
2400mm |
|
Max Diameter of Unwider/Rewider |
Ф1300 mm |
|
Distance of Unwider EPC Controll |
±150mm |
|
Power Rate |
380kw |
|
Air Flow(8P Pressure) |
0.8 m3/min |
|
Measurement |
23×12×3.5 m |
|
Weight |
About 48t |
Feature
After more than 20 years of production practice, this Lamination machine has continuously improved and innovated its models, featuring advanced technology, stable quality, convenient operation, and high degree of automation. It is widely used in the packaging, storage, and transportation of chemical, petrochemical, cement, metallurgy, and mineral industries.
