Introduction

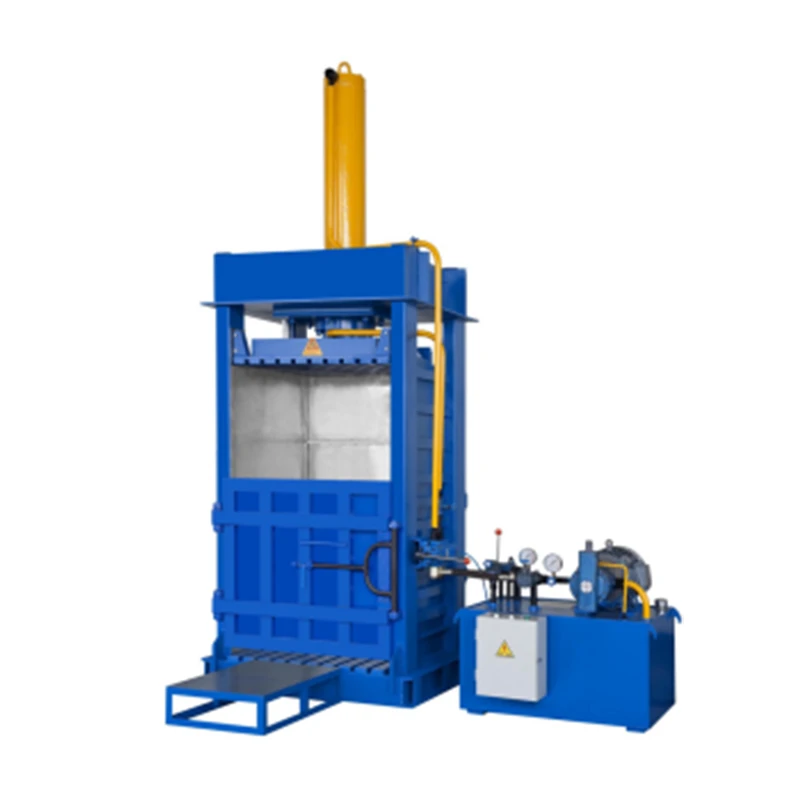

The baling machine is mainly used for packing soft articles such as plastic woven bag, jumbo bag, container bag, wasted paper, cotton piece goods, etc. it features reasonable and reliable structure, easy to operate and maintain, big pressure, packing firm, saving time and labor, etc.
1.Two sets of hydraulic equipment, the main oil cylinder press the container bag tightly，the other one push the bag what has been pressed out
2.The internal wall is made of stainless steel, so it won't influence or pollute the container bags. It is suitable to pack the container bags of 100-200 pcs.
Specification
|
Available modes |
Semi-automatic press control operation. Operate automatic press machine control. |
|
Distance Bar |
Bottom |
|
Press Capacity |
120Ton |
|
Diameter of oil cylinder |
Ф220mm |
|
Diameter of push cylinder |
Ф120mm |
|
Length of push cylinder |
1200mm |
|
Distance of up & down platform |
1900mm |
|
Moving distance of hydraulic cylinder |
1400mm |
|
Min distance of two platform |
500mm |
|
Max. working pressure |
18-20Mpa |
|
Stroke height |
1400mm |
|
Working height |
1900mm |
|
Platform dimensions |
1100×1100mm |
|
Power |
15kw |
|
Overall dimensions |
2800×2200×4200mm |
|
Weight |
5000kg |
|
Size after packing(Estimate) |
)4.5*1.6*1.7m 2.)1.2*1.2*1.2m |
