Introduction
Single Screw Blown film machine is used for blow multi color film, can be made into composite liquid packaging film, insulation film, woven bag liner, multifunctional agricultural film and so on.
Specifications/Technical parameters/Technical Data
| Item | Parameter |
| Lay-flat width | 400-750mm |
| Roller length | 900mm |
| Film thickness | 0.02-0.05mm |
| Max.production | 90kg/h |
| Suitable material | LDPE, HDPE |
| Screw Dia | 50mmx2 |
| Screw L/D | 30:01:00 |
| Screw RPM | 90r/min |
| Power of main motor | 15kw 6px2 |
| Die configuration | Die head adopts screw-type, optimized extrusion channel, without any dead angle and material leakage, with chrome coating.Die head is in fixed form |
| Take-up and rewinding | 80m/min |
| Total power | 60kw |
| Machine dimension | 5000x3000x5000mm |
Product detail
Application:
Poly film
Original: China
Price: Negotiable
Voltage: 380V 50Hz, the voltage can be as local demand
Payment term: TT, L/C
Delivery date: Negotiable
Packing: export standard
Market: Middle East/ Africa/Asia/South America/Europe/North America
Warranty: 1 year
MOQ: 1 set
Features/Equipment characteristics
1). Extruder barrel and screw are made of high quality steel nitrided and precision processing which has the best hardness and corrosion resistance. The main motor and rewinding adopts the frequency converter for speed regulation, which increases the stability of the production of the film, has the advantages of increasing the production capacity, saving energy, labor, and little floor space.

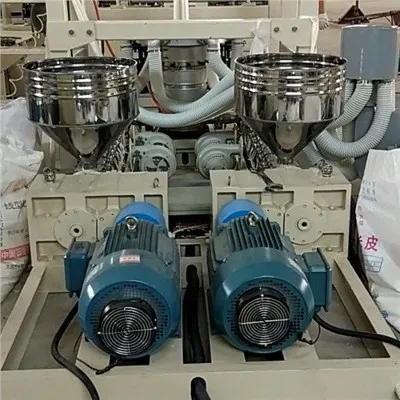

2). The machine uses two extruders to plasticize two identical or different materials into a co-extruded composite die to produce a good co-extrusion composite film, thereby greatly improving the physical properties of the film and increasing its strength, so that the film has goos barrier properties, air tightness; reduce the cost of materials.
3). This machine adopts an advanced co-extrusion compound die head to make the product smooth and even, which guarantee follow-up processes equipment such ad packaging machine, printing machine and other machine's quality requirements for film.
4). The scope of its application is gradually expanding and it is the development direction of plastic products.
Our Advantages
Customized--We are the manufacturer! sample &OEM&ODM are available!
Safety--We have own test chart, all of our products have been rigorously tested in the factory.
Certification--We have quality management system certification.
High Quality --Our company uses the most advanced equipment to make the best quality products.
FAQ
Would you have a discount if l have a large order?
A: Yes we could offer different discount according to your order quantity.
Which field are your products applied to?
Our products are widely used into PP woven packing industry, including: cement plant, sugar refinery, steel mills, and so on.
Do you accept custom design on size?
A: Yes, if the size is reasonable.
Could you print our company LOGO on the nameplate and package?
A: Yes, we can do that.
If l don't know what kind of the product I need, what should I do?
A: Just take it easy, you just need to provide us your requirement. Then, we can suggest the most suitable product to you, or we provide you our e-catalogue for your reference, you choose the suitable model, you only need to tell us the model number.
